RadSafe Radiation Filter

Smart ways to minimize radiation exposure!

RadSafe is a radiation-reducing device made of special ceramic materials that reduces scattered and refracted X-rays from C-Arm imaging during procedures and surgery. It significantly reduces radiation exposure for both patients and medical staff in the medical environment.

DOUBLE EFFECT

Reduce Direct Beam & Scatter Radiation

Primary Exposure by Short-wavelength X-rays that create images and radiation that radiates sideways.

Primary Exposure by Short-wavelength X-rays that create images and radiation that radiates sideways.

Secondary Exposure by Scattering rays that bounce off the patient's body or objects.

Secondary Exposure by Scattering rays that bounce off the patient's body or objects.

Protection for Both Patients & Medical Staff

For Doctors

Unit: (μGy/min)

For Patients

(μSv/min)

(Reference: IOP SCIENCE - Journal of Radiological Protection. Results may vary depending on the operating environment. Error range ±10%)

Maximum Radiation Exposure Reduction Rate

Scatter Radiation:

~62%

Direct Beam:

~73%

“Reduce radiation, maintain image quality.”

Wouldn’t the image quality be reduced since the device is mounted on the X-ray tube? Don’t worry — it has minimal impact on image quality.

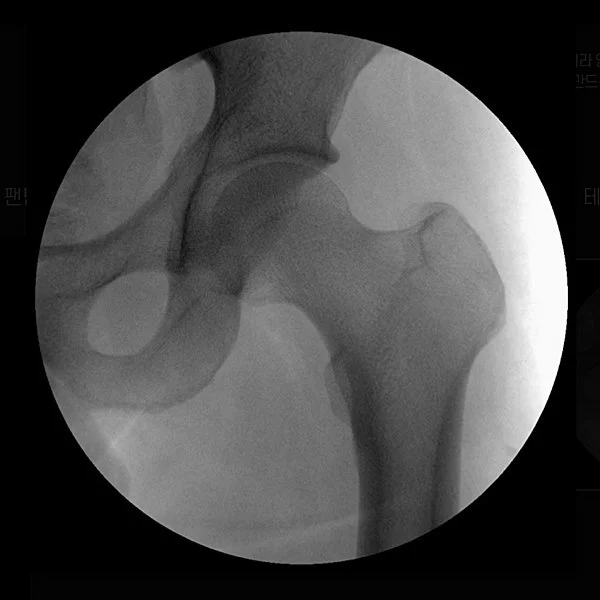

Take 23. Hip Joint without Filter

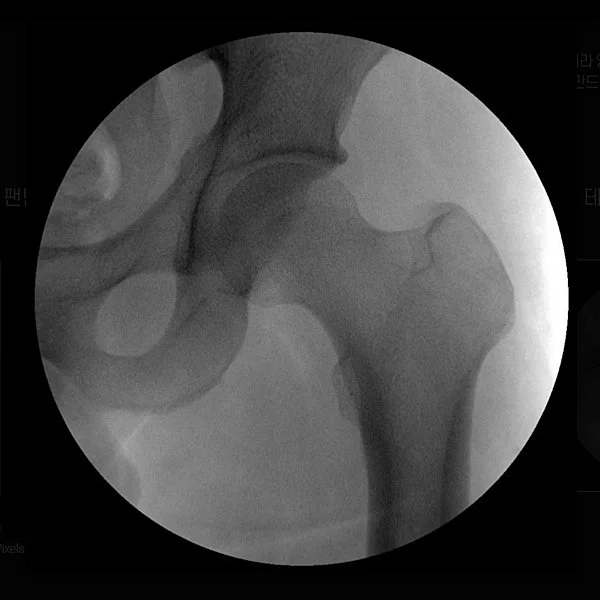

Take 23. Hip Joint with Filter

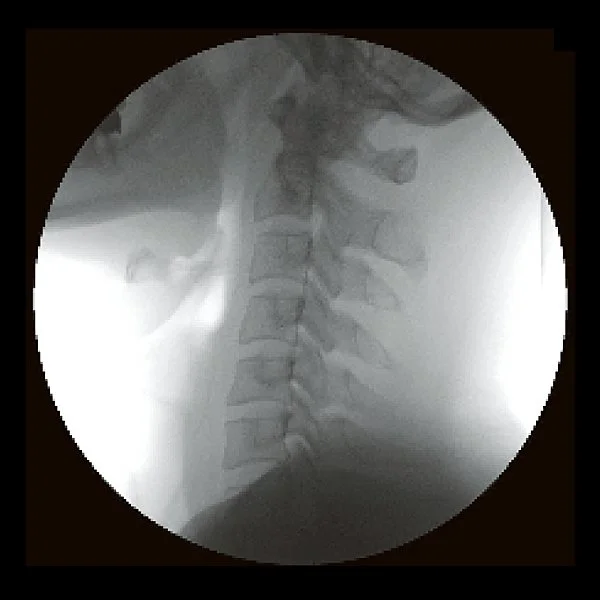

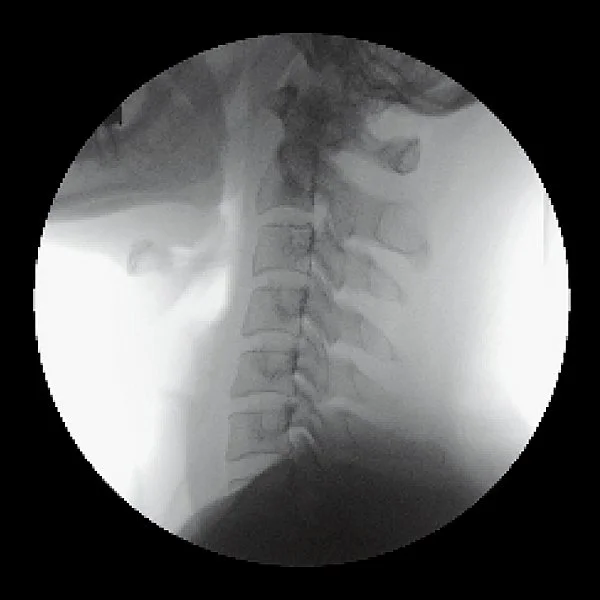

Take 2. Neck (C-spine) without RadSafe Filter

Take 2. Neck (C-spine) with RadSafe Filter

Without RadSafe

With RadSafe

Image Quality Test

Take 23. Hip Joint without Filter
With RadSafe

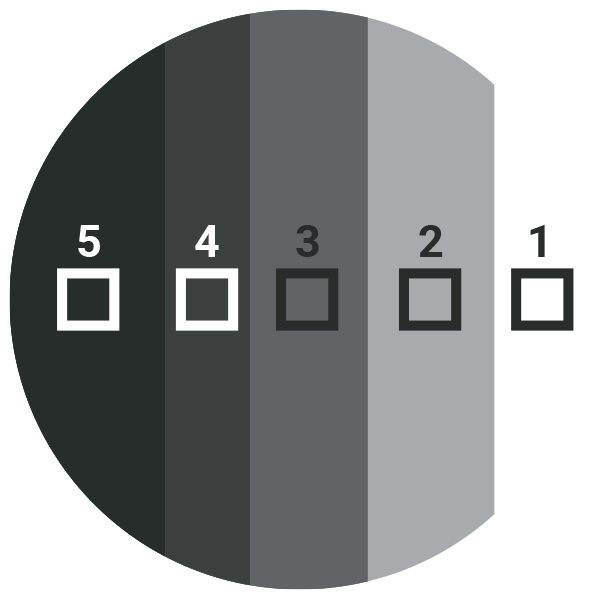

Image Phantom Contrast Test

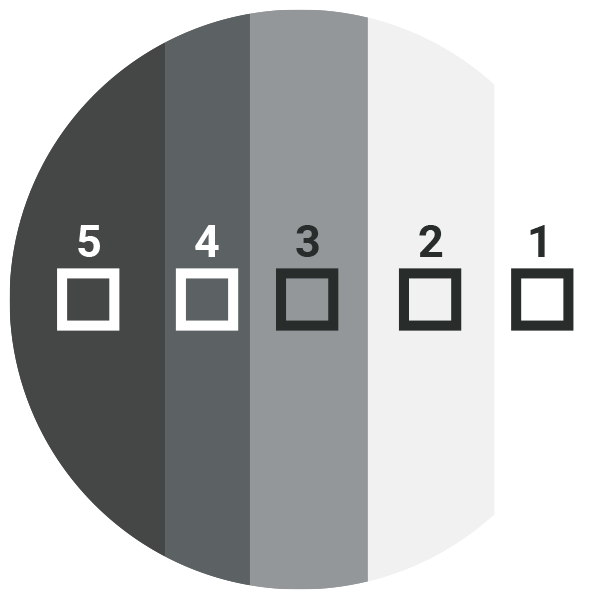

Without RadSafe

Figure 1. Acryl step phantom images before installation (above) and after installation (below) of the scattered radiation protector. Pixels in the square boxes were used to calculate the contrast resolution.

Contrast Resolution

Figure 2. CR (Contrast Resolution) of the acryl step function from the C-arm fluoroscope with and without the RadSafe radiation protector.
